Pallet
Product Introduction-Pallet
A pallet serves as a carrier to transfer work- pieces in a conveyor system between workstations.

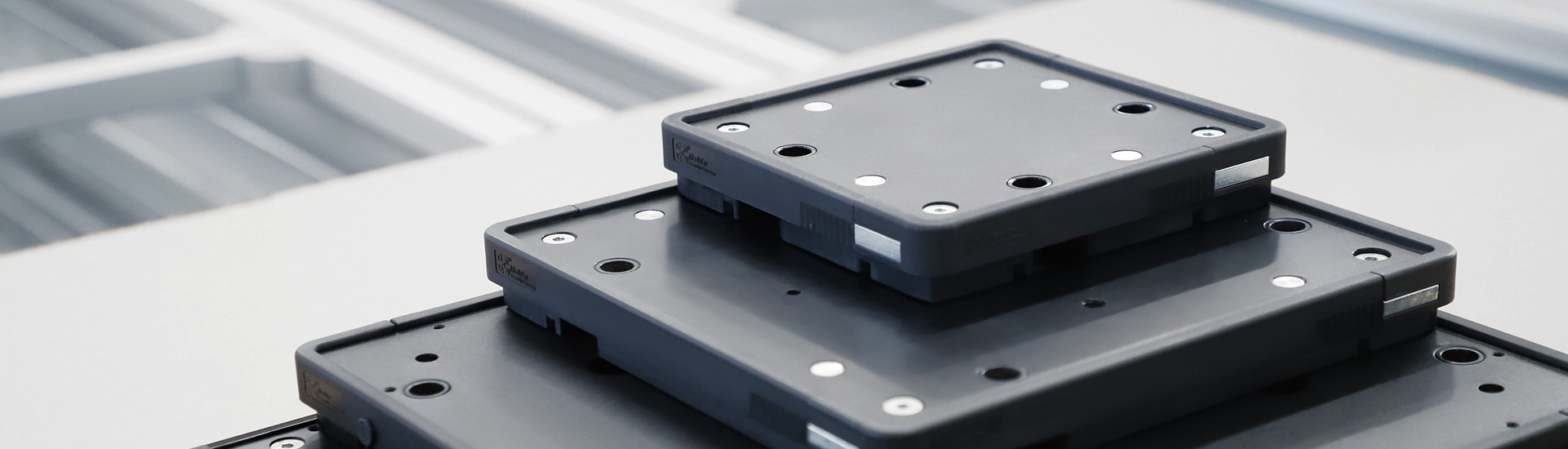

The WP2 series pallets utilise modular design. The dimensions can either be selected from stan- dard sizes, or customized to a variety of frame modules and carrying pallets. Special parts also can be custom-made to suit individual requirements.

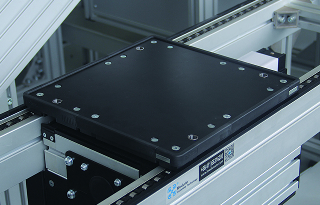

WP2/E Pallet - Product Description

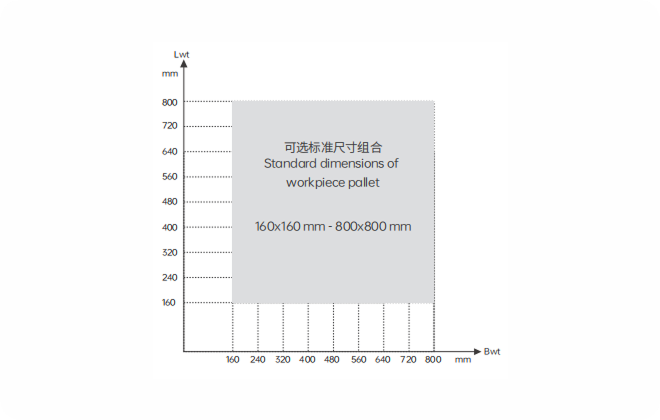

Standard dimensions of workpiece - -
pallet 160x160 mm - 800x800 mm
Light weight, short lead time
Cost-effective
Suitable for toothed belt, flat belt, - -
flat top chain
Not applicable to accumulation chain
or 06B double row chain
Suitable for use in EPA applications
Material: PA frame, aluminum or steel
support plate.

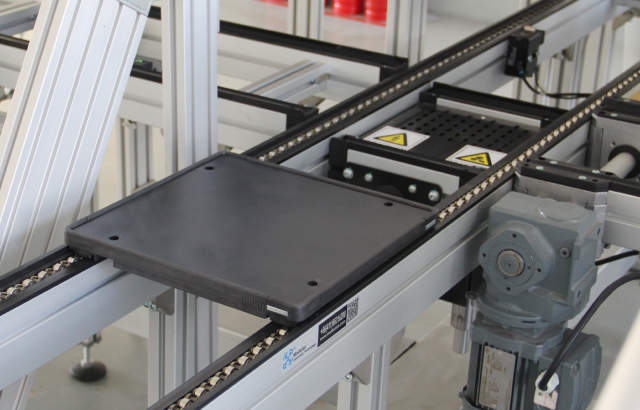

WP2/S Pallet - Product Description

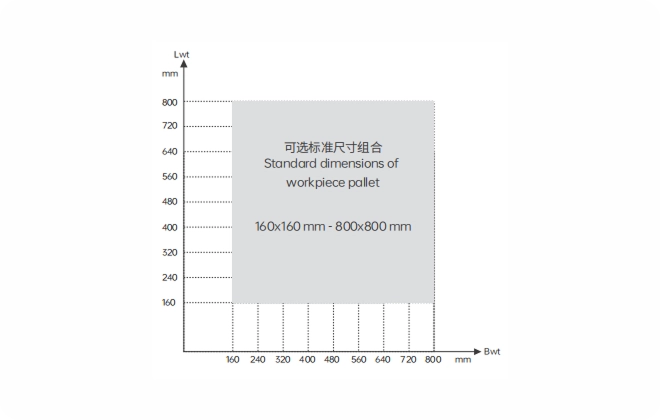

Standard dimensions of workpiece - -
pallet 160x160 mm - 800x800 mm
Light weight, short lead time
Applicable to accumulation chain or -
06B double row chain
Suitable for use in EPA applications
Wear strip replaceable
Material: PA frame (with UPE bottom
wear-resistant strip), aluminum or - -
steel bearing plate.

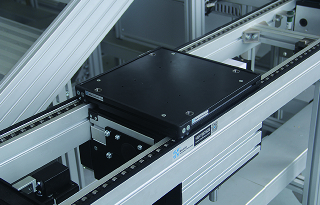

WP2/R Pallet - Product Description
Special dimensions on request
Suitable for PRC high-speed roller - - - -
conveyor
Suitable for use in EPA applications
Material: aluminum and PA frame
(with UPE bottom wear-resistant - - - - -
strip), aluminum or steel bearing plate.

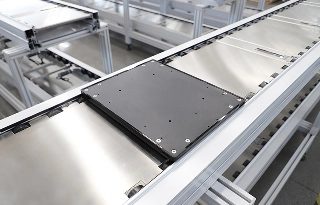

WP2/C Pallet - Product Description
Special dimensions on request
Short lead time
Suitable for use in EPA applications
Material: aluminum alloy frame
(with UPE bottom wear-resistant - - - - - strip), aluminum or steel bearing plate.
