Accessory Units
Product Introduction-Accessory Units
The supporting mechanism can meet the requirements of multi angle conversion of conveying methods and enable rapid circulation of pallets between different production processes.

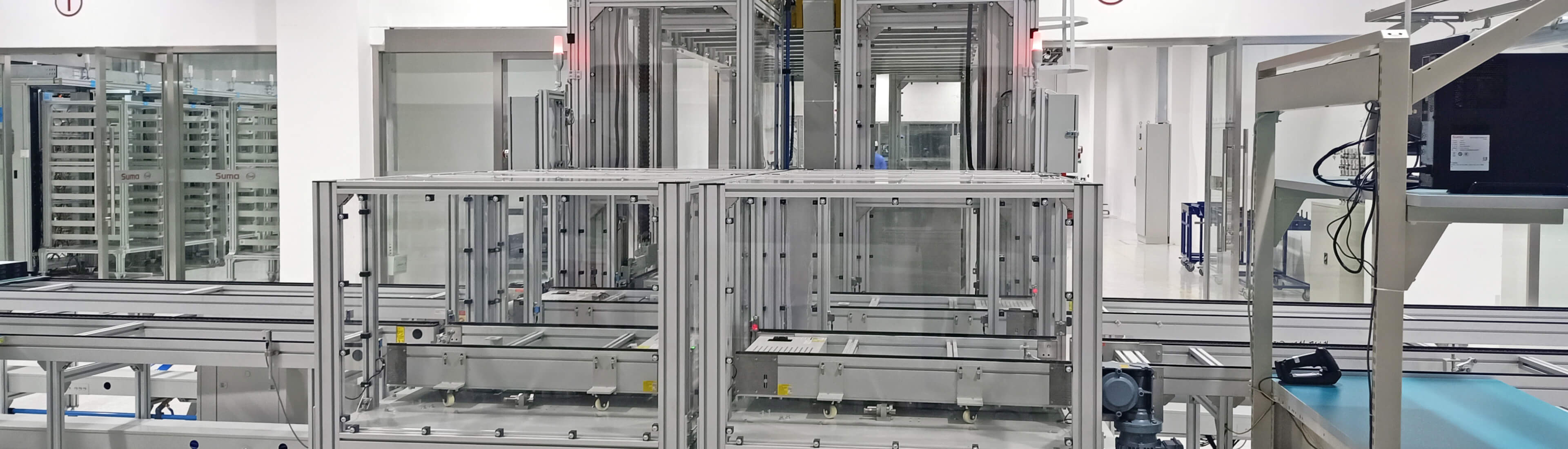

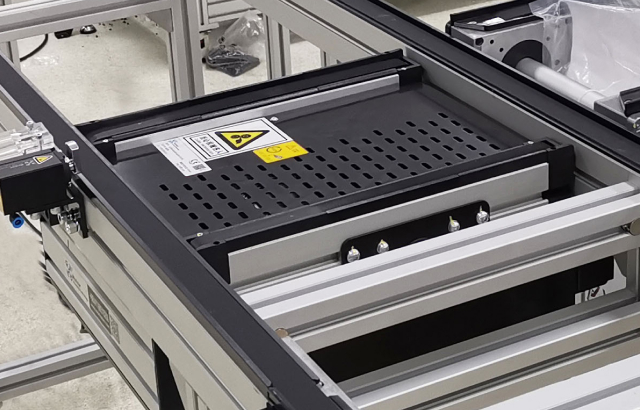

Lift and Transverse Unit
Used to transfer a pallet horizontally from one conveying line to another
perpendicular line
Changes the direction of the pallet
Can carry a large variety of small conveyors
Round Belt Curve
Used to convey a pallet through a 90° turn
Does not change the orientation of the pallet in relation to the conveyor
One pallet is passed through at a time, does not permit stacking of pallets.

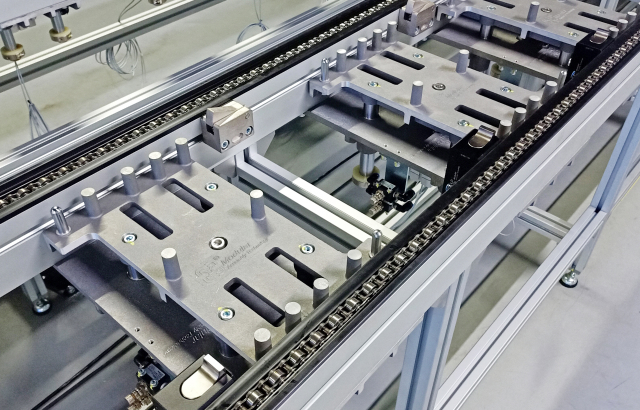

Lift and Positioning Unit
Used to position a pallet on a workstation
Repeat positioning accuracy within ±0.1 mm Can be used with WP2 series Pallets

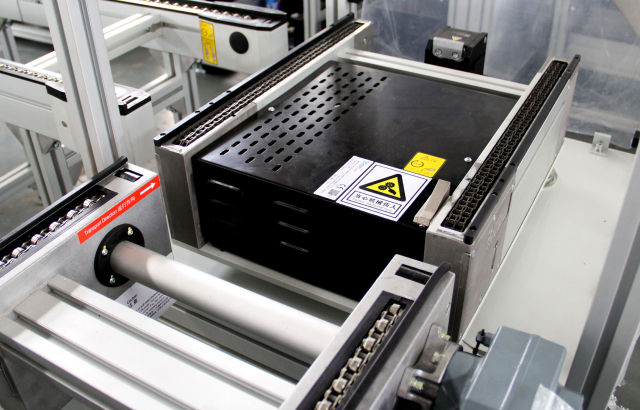

Rotate Unit
Used to rotate a pallet to a required orientation
Can maintain or change the direction of pallet delivery
Can carry a large variety of small conveyors

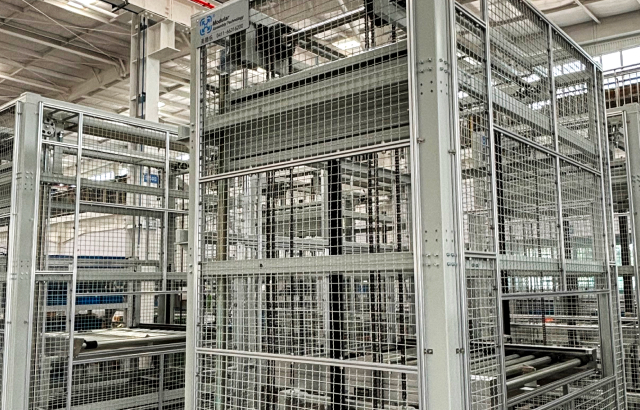

Lift Unit
Used to transfer a pallet vertically between two or more layers of
conveyor lines
A variety of lifting structures are available
Can carry a large variety of small conveyors
