Product Introduction
The PTS2, PTS2/D, PTS2/L, PTS2/R and PTS4 and other models adopt chains as conveying medium to achieve precise conveying of pallets through continuous motion with pallet stacking and waiting. Equipped with steel load-bearing wear strips and an open-profile structure, they are robust and durable while easy to maintain and service. They are suitable for conveying heavy products such as automotive com- ponents, new energy battery modules, motors, etc.
Modular
Modular

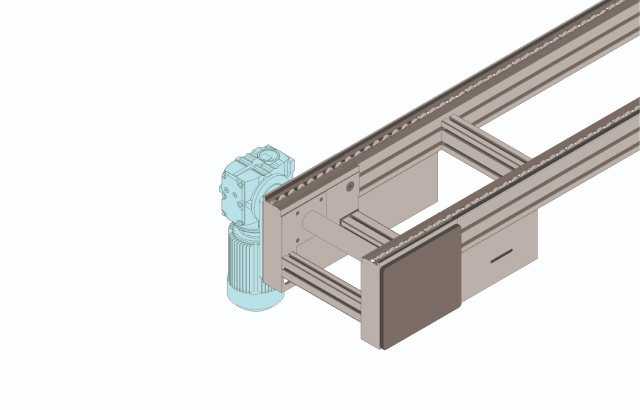

PTS2 Pallet Conveyor - Product Description
Maximum load capacity:
2200 kg (PTS2)
1800 kg (PTS2/D)
700 kg (PTS2/L)
200 kg (PTS2/R)
Pallet width: 160-1200 mm
Conveyor section length: 600-12000 mm
Conveyor medium:
08BS, Accumulation chain (PTS2, PTS2/L, PTS2/L)
2.5 speed ratio accumulation chain (PTS2/D)
Modular

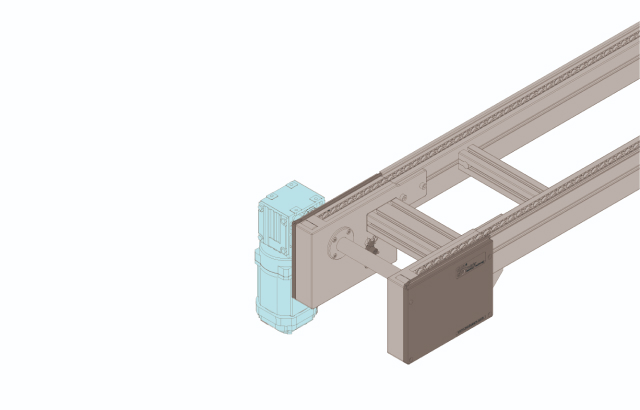

PTS4 Pallet Conveyor - Product Description
Maximum load capacity: 3000 kg
Pallet width: 160-1200 mm
Conveyor section length:
1200-12000 mm
Conveyor medium:
12BS accumulation chain
