Product Introduction
PTS5, PTS5/L, PTS5/E and other models adopt rollers as conveying medium to achieve precise conveying of pallets continuous motion with pallet stacking and waiting. They have advantages of high compatibility with a variety of pallet materials and styles, low maintenance, low noise, high energy efficiency and low driving power requirements. The are suitable for conveying heavy products such as automotive engines, transmissions, new energy battery packs, etc.
Modular
Modular

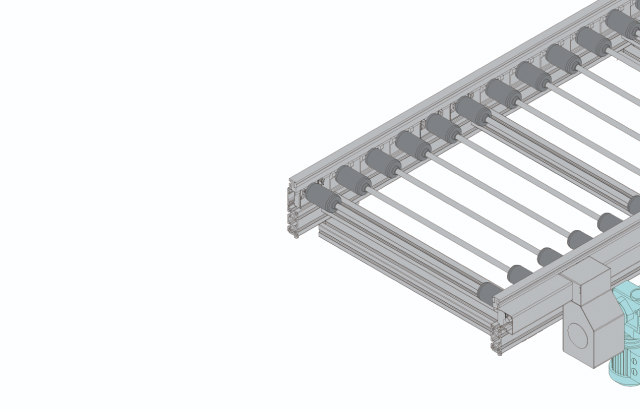

PTS5 Pallet Conveyor - Product Description
Maximum load capacity: 4500 kg
Pallet width: 400-1200 mm
Conveyor section length: 1000-6000 mm
Conveyor medium: roller
Modular
PTS5/L Pallet Conveyor - Product Description
Maximum load capacity: 2500 kg
Pallet width: 400-1200 mm
Conveyor section length: 1000-6000 mm
Conveyor medium: roller
Modular
PTS5/E Pallet Conveyor - Product Description
Maximum load capacity: 1500 kg
Pallet width: 455 / 650 / 845 / 1040 mm
Conveyor section length: 780-6000 mm
Conveyor medium: roller
